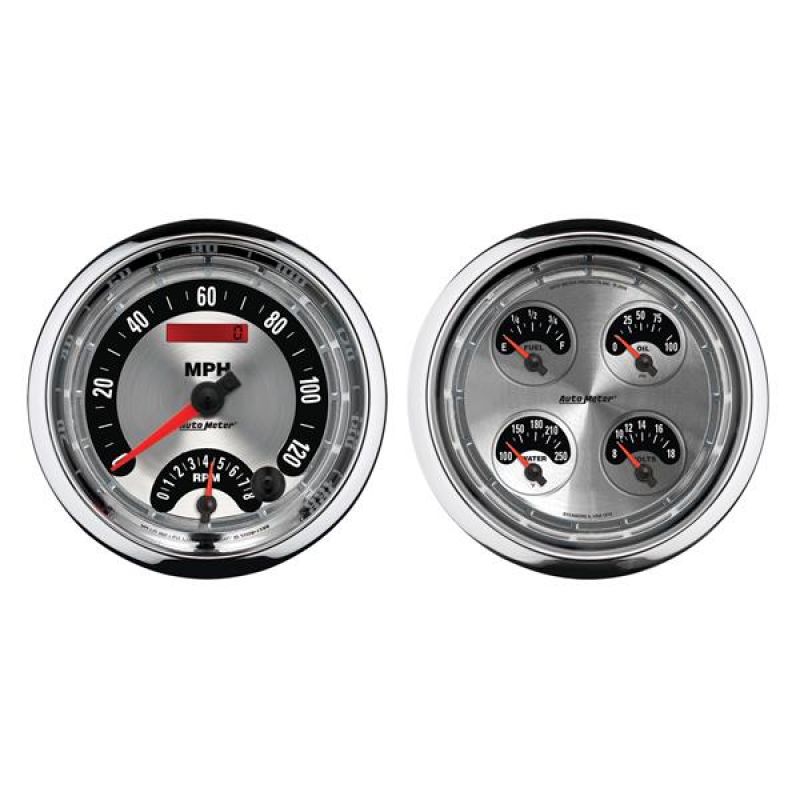

1205 AutoMeter Gauge Kits

Modern white LED through-the-dial lighting provides clear visibility during nighttime use. AMERICAN MUSCLE.

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8? NPT temperature sender and a 1/8? NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter?s 3262 fuel level sender).

Features:

• Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
• Tachometer is compatible with 0.5 - 6 pulse ignition signals (1-12 cylinder engines) with points, electronic, and most 12V high-performance racing ignitions.
• oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD)
• Autometers Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle
• Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
• 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
• Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
• 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
• mounting hardware, and detailed instructions for installation.
• sending unit adapters (1/4" , 3/8" , and 1/2" NPT adapters)
• Kit includes fuel level sender (240E/33F)
